RAPTOR X series
FEATURES
Large lid of Ø400mm in transparent methacrylate 25mm thick
Supplied with stainless steel VA4 gauge adaptor
Supplied with stainless steel VA4 pressure gauge
Screws and washers are in stainless steel VA4
Supplied with nickel plated brass anti-galling nuts
Air release valve with a splash proof 6mm tube connection
Extended filtration media bed height
Large sand drain of 2”1/2 and water drain of 1”1/4
Supplied with water drain valve kit
Filtration arm slots of 0,25mm
Upper internal kit union for ease of maintenance
Test pressure 3,75 bar
​
Internal white gelcoat protection layer
​
Max operating pressure 2,50 bar
​
Max water temp 60°C
DIN EN 16713 Compliant
​
Supplied with selector valve
​
Warranty of 5 years.
Designed for
Ease of Maintenance
Maintenance is the important part to consider when choosing a pool filter.
Raptor models provides maximum versatility, able to reach every point of the filter easily.
Upper Internal set twist or remove completely to fill sand or reach bottom parts easily.
​

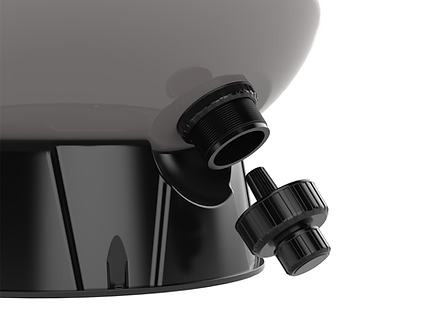

Maximized Drain design
Raptor models Are equipped with a largest drain on the market today, providing sand draining using a mesh bag and some water without the fuss of removing it from the top.
Spill-free water draining kit with valve for water emptying of the tank by connecting a 25mm hose towards the drain.
​
Built for highest performance
Tank structure is engineered in a way to exceed the performance requirement in EN16713-1 standards, the lesser inflation movement the tanks make the higher the performance is, and this is only reachable with our special layers and reinforced body structure that adds a significant durability to the filter tank lifespan.
